Cameron Compressor MH Series

Product Categories

Shandong Kerui Petroleum Equipment Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Contact Now

Performance:

Internally installed lubrication oil guide, saving the unit space;

Various type standard cylinders are available for customers, providing a widely application;

With a max speed 1200RPM, and max gas discharge pressure 42MPa;

It is widely used in natural gas processing, fuel gas boosting, gas injection and lifting

Data Sheet

Model	MH62	MH64	MH66
Number of Power Cylinders	2	4	6
RPM Range	600~1200RPM	600~1200RPM	600~1200RPM
Max. Discharge Pressure	42MPa	42MPa	42MPa
Drive Method	Natural Gas Engine / Electric motor	Natural Gas Engine /Electric motor	Natural Gas Engine /Electric motor
ContinuousPower	1343kw	2685kw	4027kw
Stroke	152mm	152mm	152mm
Rod Diameter	57mm	57mm	57mm
PistonSpeed	6.1m/s	6.1m/s	6.1m/s
LubeOil Flow Rate	60.6L/min	121.1L/min	302.8L/min
Width×Length	428×142 cm	428×254 cm	428×366 cm
Weight	3227kg	6818kg	10455kg

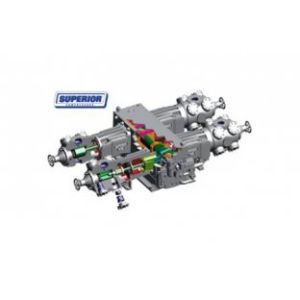

Cameron Compressor MH Series Images
